Vacuum Filteration System

Brand Nest
Category Vacuum Filteration System
Applications Tissue Culture
Price on request

Send us an enquiry below and our team will come back to you with a quote.

Request a quote

Description

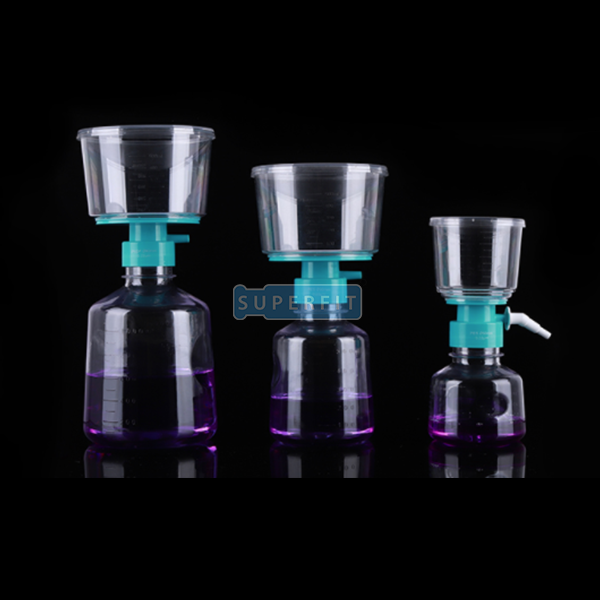

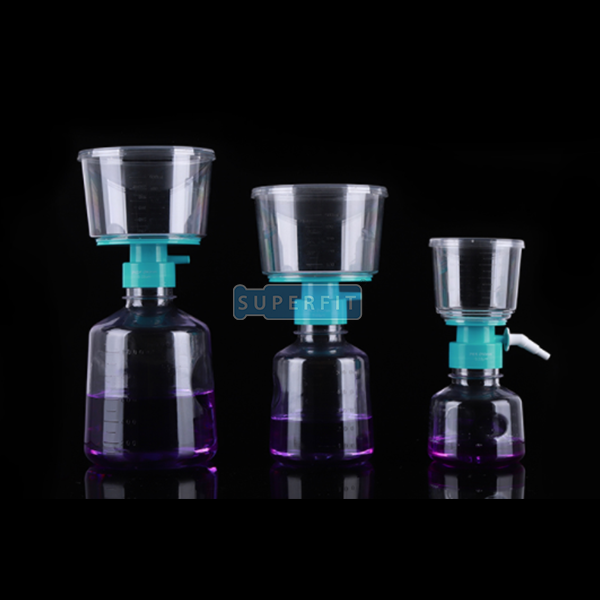

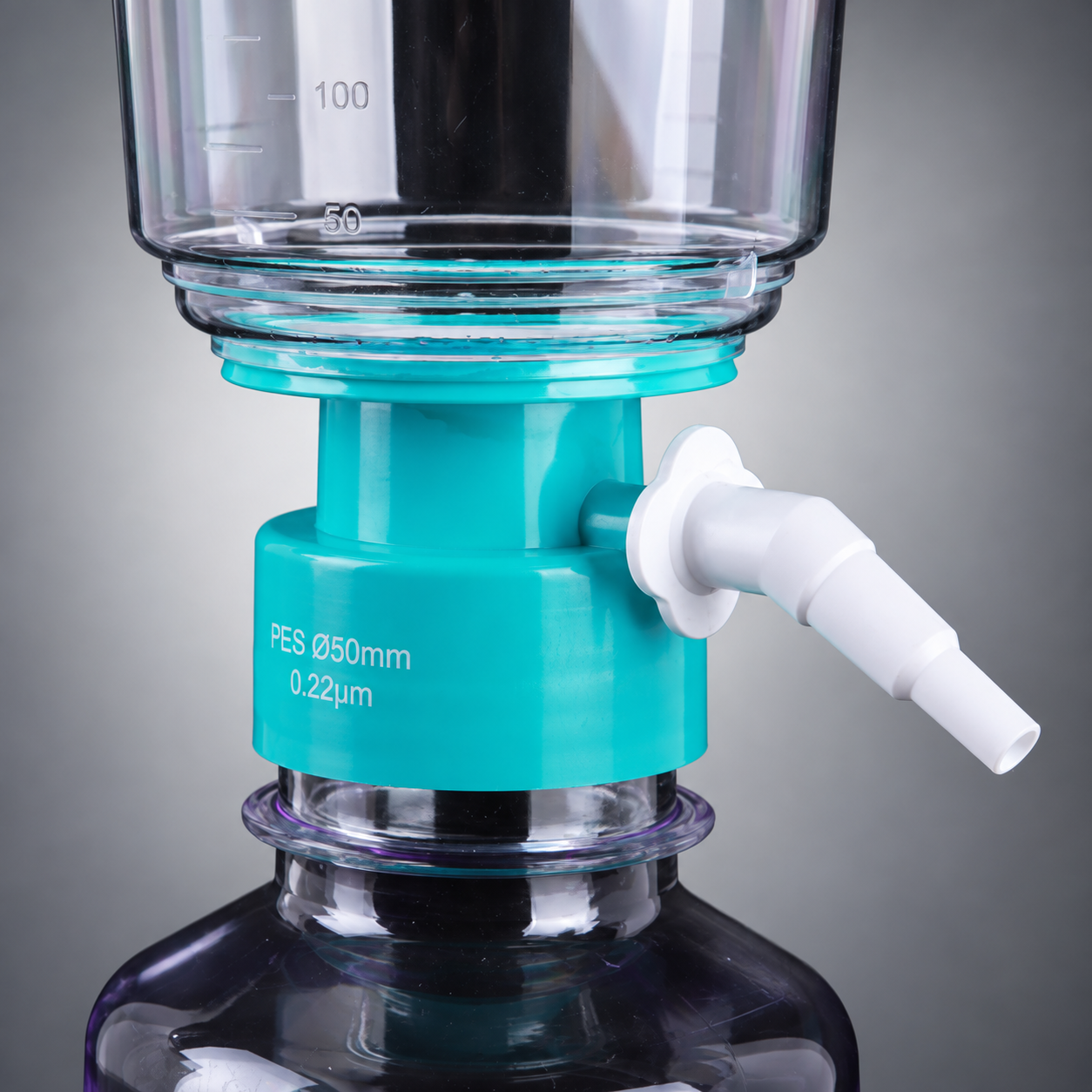

NEST Disposable Vacuum Filtration System is useful for sterilizing the large volume sample for tissue culture media and many other biological buffers which cannot be autoclavable. The units include PES or PVDF membrane filters with graduated filter tops made with polystyrene, and Acrylonitrile-Butadiene-Styrene necks with polystyrene receiving bottles. A separated sterile polyethylene cap is included. Filtration system is manufactured from raw material of highly transparent polystyrene (PS). Filtration system comes in three different volumes: 250mL / 500mL / 1000mL.

  • High flow rates and throughput.
  • Low protein binding and low chemical extractable.
  • Precise graduation on the bottle wall
  • Filter Pore size: from 0.10um to 0.45um.
  • Membrane material: PES, PVDF, CA, MCE
  • Volume Available: 250ml, 500ml & 1000ml

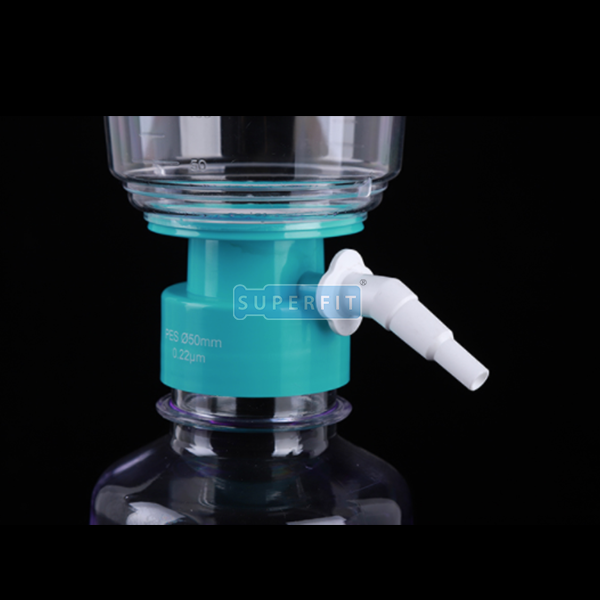

  • The design of hose connector is adaptable to various hose diameters.
  • Light weight and firm outer wall structure, easy to grasp
  • Non-Pyrogenic, DNase/RNase free.
  • Sterilized by E-beam

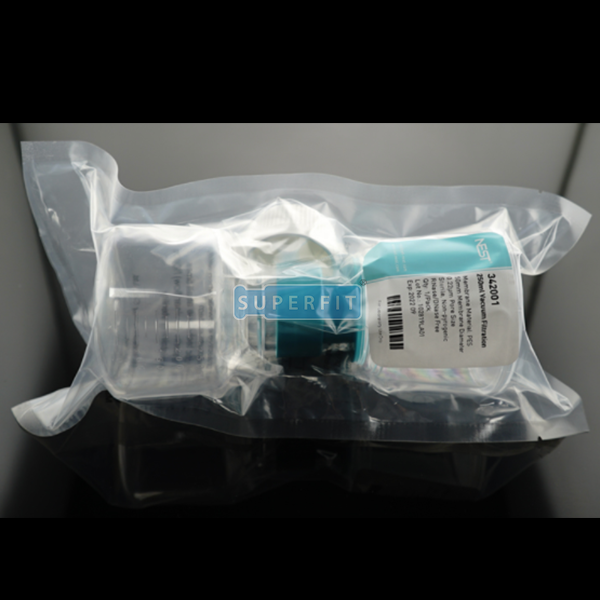

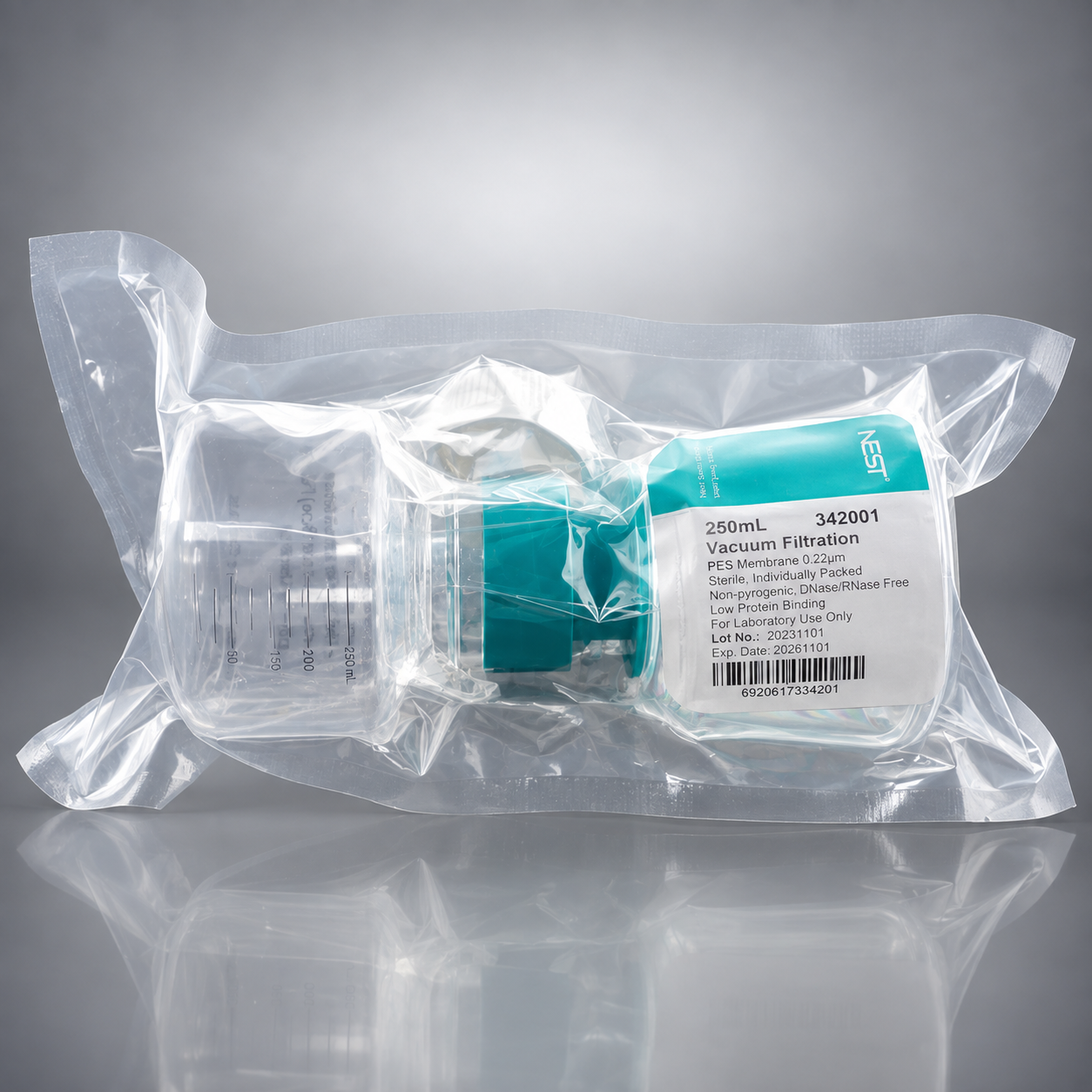

  • Individually packaged in sterile bag. Product can be procured in 3 ways: complete system, upper top with filter or receiving bottles.

Specifications

Vacuum Filtration System

CA Membrane Cat. No. PES Membrane Cat. No. MCE Membrane Cat. No. PVDF Membrane Cat. NO. Volume (ml) Pore Density (?m) Membrane Diameter (mm) Max. Temperature (?) Neck Diameter (mm) Height (mm) Material Of Neck Qty./Pack Qty./Case
342302 342002 342202 342102 250 0.10 50 45 45 198 ABS 1 12
342301 342001 342201 342101 250 0.22 50 45 45 198 ABS 1 12
342303 342003 342203 342103 250 0.45 50 45 45 198 ABS 1 12
343302 343002 343202 343102 500 0.10 90 45 45 247 ABS 1 12
343301 343001 343201 343101 500 0.22 90 45 45 247 ABS 1 12
343303 343003 343203 343103 500 0.45 90 45 45 247 ABS 1 12
344302 344002 344202 344102 1000 0.10 90 45 45 280 ABS 1 12
344301 344001 344201 344101 1000 0.22 90 45 45 280 ABS 1 12
344303 344003 344203 344103 1000 0.45 90 45 45 280 ABS 1 12

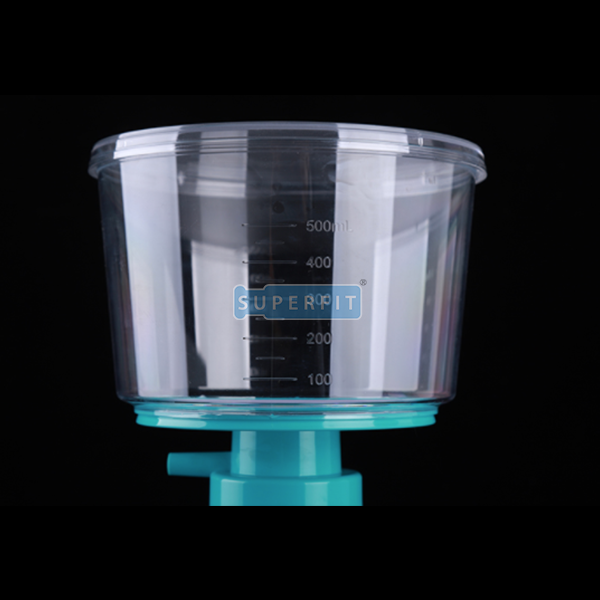

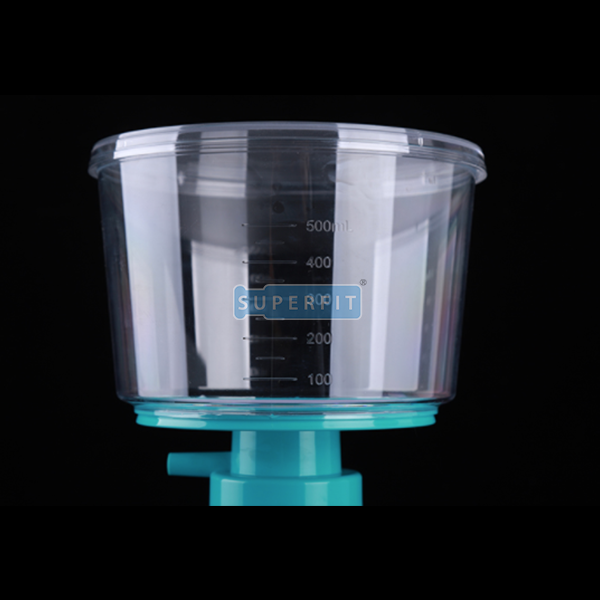

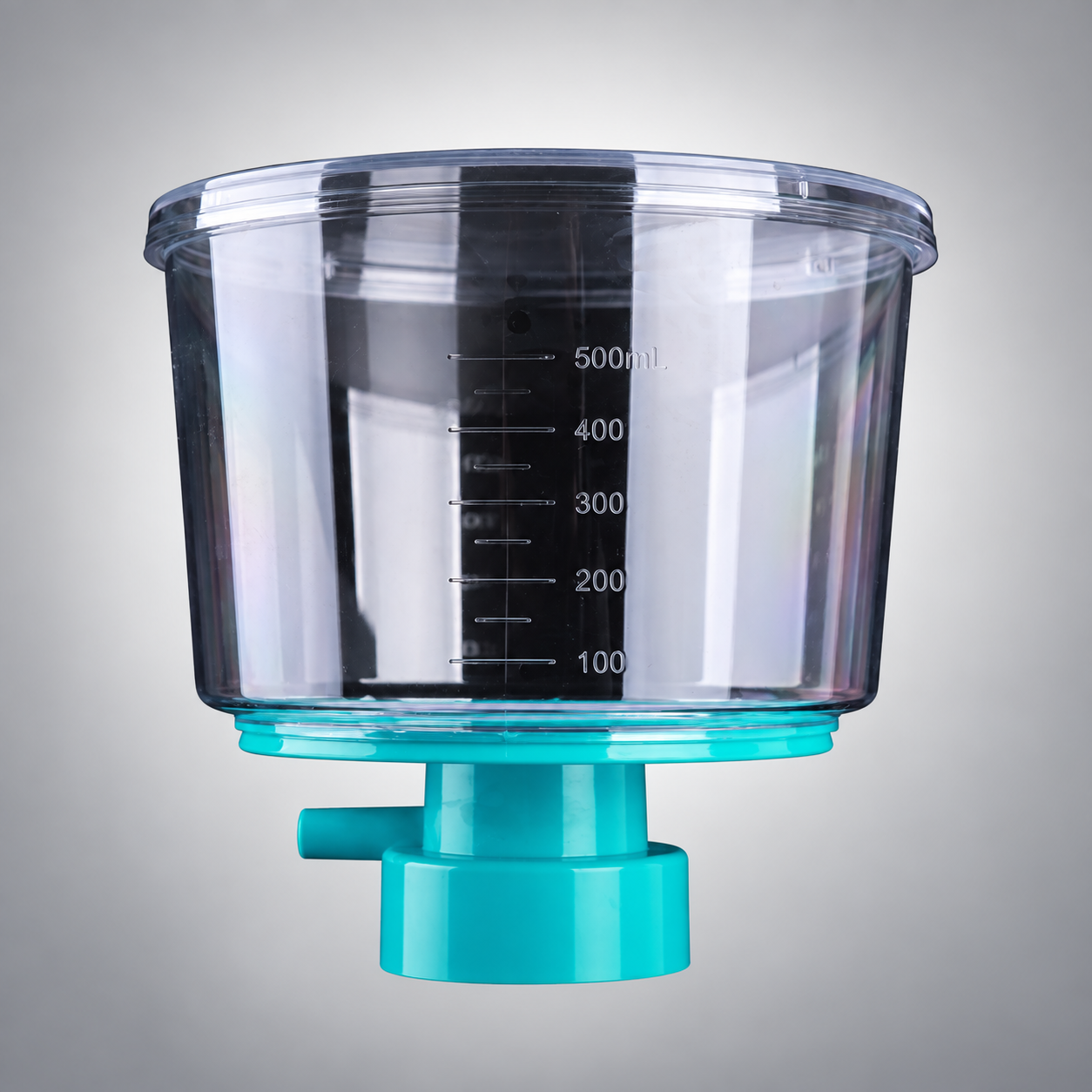

Bottle Top Vacuum Filter Only

Cat. No. Volume (ml) Pore Density (?m) Qty./Pack Qty./Case
342011 250 0.22 ?m, PES 1 24
342111 250 0.22 ?m, PVDF 1 24
343011 500 0.22 ?m, PES 1 24
343111 500 0.22 ?m, PVDF 1 24
344011 1000 0.22 ?m, PES 1 24
344111 1000 0.22 ?m, PVDF 1 24

Receiving Bottle

Cat. No. Volume Qty./Pack Qty./Case
342021 250 1 24
343021 500 1 24
344021 1000 1 12
