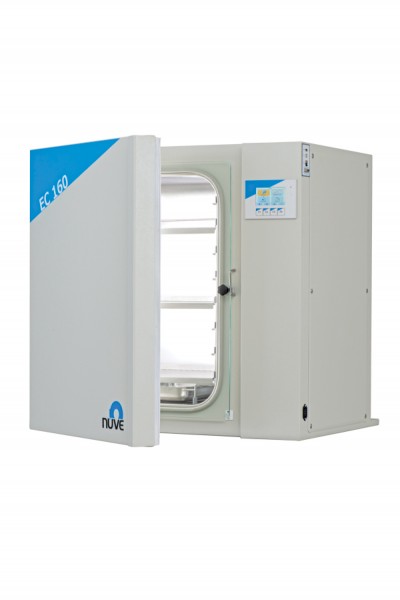

With its clean chamber conception of rounded corners, no crevices (even in the racking system) for contaminants to hide and with gentle air circulation, the EC 160 is designed to resist contamination and protect your valuable cultures. Fast temperature recovery, without any overshoot continues this substantial protection.

Comprehensive N-Smart™ control system keeps the user fully informed with display of set and actual parameter values. Should any alarm situation occur, a variety of alerts can be invoked. Optional AlerText™ will send a text message to you anywhere in the world and could include the NÜVE service support for fast response.

Wet disinfection by NüveDis™ ensures a clean chamber. Removing the shelves and racks (only 20 seconds!) permits use of the nUVeray™ ultra-violet option that can achieve sterilization in a very short time.

• Temperature variation / fluctuation: ± 0,3°C / ± 0,1°C at 37°C
• Programmable temperature alarm range: ± 0,5°C to 5°C
•
• CO₂Range: 0 to 20 % CO₂
• CO₂Variation / Fluctuation: ± 0,3 % / ± 0,1%
• Programmable CO₂ alarm range: ± 0,5 % to 5 %
• Infra-Red CO₂ level control permitting frequent Access
• N-Smart™ control system to optimize parameters
• LifeCell™ control software to optimize parameters
• Equipped with Wi-Fi connection for N-mobile™
• Password protected control system
• RS232 port for PC or AlerText™
• Maximum information with highly visible 4,3’’ colourful LCD display
• Simultaneous display of set and actual values
• Seamless stainless steel chamber with rounded corners
• Clean chamber without any sensor inside
• Massive data storage with NuveTrack™ which stores the records up to ten years with one hour intervals as digitally and graphically
• Ethernet port for remote access through internet
• Optional NuveCloser™ software to access the operating parameters, failure history, memory and other technical parameters
• Auto Zero for permanent accurate control
• Typical 95 % RH to protect cultures against dehydration
• Audible and visual (text) alarms, remote alarm relay
• Remote alarm outlet
• Optional AlerText™ SMS alarm system for ultimate security
• Optional NuveWarn™ remote alarm system
• Built-in 2nd stage gas regulator
• Optional NuveRay™ UV light sterilization kit
• Optional NuveClean™ decontamination kit for humidity tray


  Specifications

  Technical Specifications	EC 160
  Control System	N-Smart™ microprocessor control system
  Temperature Range	Ambient temperature +7°C / 50°C
  Temperature Set & Reading Sensitivity	0,1°C
  Temperature Variation / Fluctuation (@37°C  )	+0,3°C / +0,1°C
  Programmable Temperature Alarm Range	+0,5°C / 5°C
  Temperature Sensor	Pt 100
  CO2 Range	0% - 20%
  CO2 Set & Display Sensitivity	0,1%
  CO2 Variation / Fluctuation	+0,3% / +0,1%
  Programmable CO2 Alarm Range	+0,5% to 5,0%
  CO2 Sensor	Infra-Red (IR)
  Calibration	Auto-zero in every 12 minutes
  Contamination resistance	Infrared sensor, Automatic zeroing gas line and 0.22 µm filter in the CO2 gas inlet line
  Relative Humidity Level	95% RH + %5
  Recovery Times after 30 sec. door opening	To 36,5°C  8 min, to %4.9 CO2 3 min
  Disinfection	NüveDis™ 90 °C password protected moist disinfection
  Chamber Volume, Material & Design	160 Liters   Stainless steel   Rounded corners - No fittings
  Number of Shelves (standard / maximum)	3 / 8
  Shelf Load Area (WxD) mm	465 x 400
  Shelf Capacity	20x90 mm / 56x55 mm Petri dish and 15x250 ml flask
  Casing / Insulation Materials	Electrostatic powder coated steel / Aluminum foil coated glass wool
  Display	4,3'' Colourful TFT LCD Display
  Data Recall	7 years data record with NüveTrack™
  Data Reporting	NüveCloser™ software and USB port for external memory
  Alarms	Audible and visual messages, NüveWarn™ remote alarm system. Optional AlerText™ GSM Alarm module
  Power Consumption	900 W
  Power Supply	230 V - 50 Hz
  Internal Dimensions (WxDxH) mm	500 x 460 x 700
  External Dimensions (WxDxH) mm	917 x 725 x 905
  Packing Dimensions (WxDxH) mm	960 x 780 x 1200
  Net/Packed Weight kg	117 / 138



  Accessories

  Cat Nos.	Description	Qty/Pack
  FACTORY FITTED OPTION
  EC 160H	Cable port (25  mm)	each
  OPTIONS
  A 08 191	AlerText™ GSM alarm module	each
  K 13 009	NuveWarn™ remote alarm system with 10 m. cable	each
  A 08 143	nUVeRay™ UV light sterilization kit	each
  A 08 237	NuveCloser™ Software for PC (operates through internet)	each
  ACCESSORIES
  R 01 154	Stainless steel shelf	each
  A 08 146	Stacking adaptor	each
  A 08 147	Support frame	each
  A 08 148	Roller base	each
  F 06 003	0.22 µm Biological filter (Spare)	each
  R 11 007	Single stage regulator for CO2 gas cylinder	each
  A 08 149	Gas changeover unit for two CO2 gas cylinders	each
