Designed for freezing, incubation, drying of different types of tests and long storage in the fields of biology, zoology, botany and the quality control and R&D laboratories in industries such as pharmaceutical, food and cosmetics.

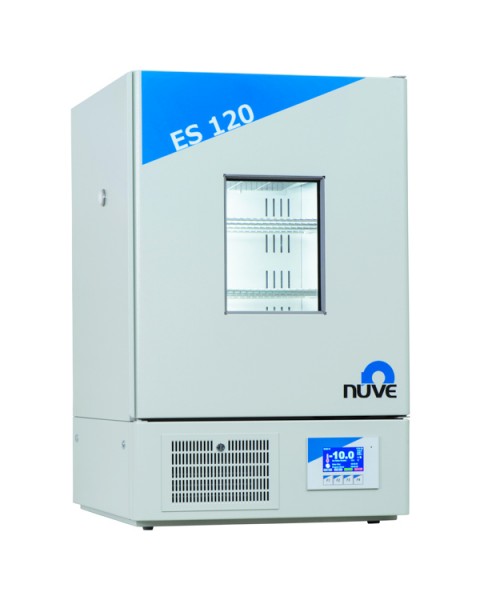

Designed to reproduce incubation conditions for comparative studies, the ES Series cooled incubators are powered by N-Smart™ control system By means of the internal memory of N-Smart™ temperatures records with one hour intervals can be stored up to ten years as digitally and graphically.

Optional NuveCom™ communication unit allows to ES series cooled incubators to use the advantages of optional AlerText™ GSM alarm module. Sending e-mail up to five e-mail addresses in case of any failure is offered as standard with NuveCom™. USB port on NuveCom™ allows to srore the datas on memory stick with different time intervals.

Full traceability and remote access is available with the optional NüveCloser™ system providing a guarantee that the samples have been subjected to the selected protocol.

• Maximum information with highly visible 4.3’’ colourful LCD display
• Possibility of repeating each program up to 99 times
• Stainless steel chamber
• High density injected polyurethane insulation
• Powerful air circulation system for excellent temperature uniformity and stability even at low temperatures
• Automatic defrost system
• Large window on the door consisting of triple glass for perfect insulation
• Interior lighting
• Optional NuveCom™ communication unit which includes 2 pcs. USB port for data storage and PC, ethernet port for remote access through internet and RS 232 outlet
• Optional NuveCloser™ software to access the operating parameters, failure history, memory and other technical parameters
• Optional Wi-Fi connection for N-Mobile™

  Specifications

  Technical Specifications	ES 120	ES 252
  Chamber Volume (liters)	120	252
  Control System	N-Smart™ Control System With Programmable Microprocessor
  Display	43’’ Colourful TFT LCD Display
  Temperature Range	-10°C to +60°C
  Temperature Setting and Reading Sensitivity	0.1°C
  Temperature Homogeneity  (@ 4°C, 22°C and 37°C)	±0.5°C
  Programmable Alarm Limits	±1°C at 10°C Audible and Visual
  Number of Program Memory	20
  Programmable Number of Steps	20
  Number of Program Repetition	1 - 99
  Timer	1 min – 100 Hours + Hold Position
  Delayed Start Timer	1 min – 100 Hours
  Alarm	Audible and visual
  Insulation	High density injected polyurethane
  Internal Material	Stainless steel
  External Material	Electrostatic powder coated stainless steel sheet
  Number of shelves (standard/max) PCS	2/10	3/20
  Power Supply	230 V - 50 Hz
  Power Consumption	800 W	1250 W
  Internal Dimensions (WxDxH) mm	480x545x600	475 x 545 x 1110
  External Dimensions (WxDxH) mm	655x745x1020	650x745x1855
  Packing Dimensions (WxDxH) mm	770x890x1190	700x860x2040
  Net/Packed Weight kg	89 / 117	150 / 175



  Accessories

  Cat Nos.	Description	Qty/Pack
  FACTORY FITTED OPTION
  ES XXX WF	Wi-Fi connection	each
  OPTIONS
  A 08 190	NuveCom™ communication Unit USB port to store the temperature records on memory stick World-wide access via ethernet port with NuveCloser™ Rapid support by sending e-mails with the details of the failure RS 232 port for PC or AlerText™	each
  A 08 191	AlerText™ GSM alarm module (should be ordered with A 08 190)	each
  A 08 195	NuveCloser™ Software for PC with 3 m. RS 232 cable (should be ordered with A 08 190)	each
  A 08 231	NuveCloser™ Multi Software (connection up to 15 devices)	each
  ACCESSORIES
  R 01 130	Shelf for ES 120/252	each
  K 23 040	Shelf carrier for ES 120/252	each
