COMPACT COOLING CENTRIFUGE

Brand	Remi Instruments
Category	Centrifuges
Applications	Pathological Equipments, Molecular Pathalogy, Healthcare, Microbiology

Price on request

Send us an enquiry below and our team will come back to you with a quote.

Request a quote

Description

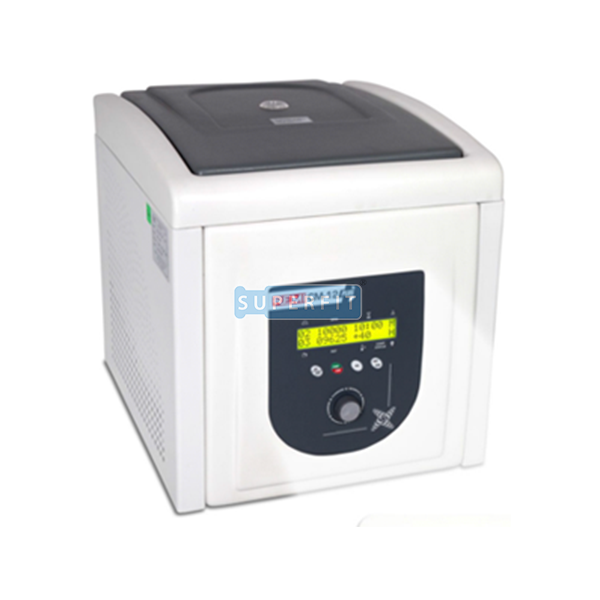

These newly developed compact bench top Cooling Centrifuges models CM-8 Plus and CM-12 Plus offers quiet operation with very small footprint.

Centrifuge model CM-8 Plus is suitable for routine sample analysis in Medical, Hospital, Pathology and Institutional laboratories. With a wide choice of rotor heads and adaptors, this unit is truly versatile.

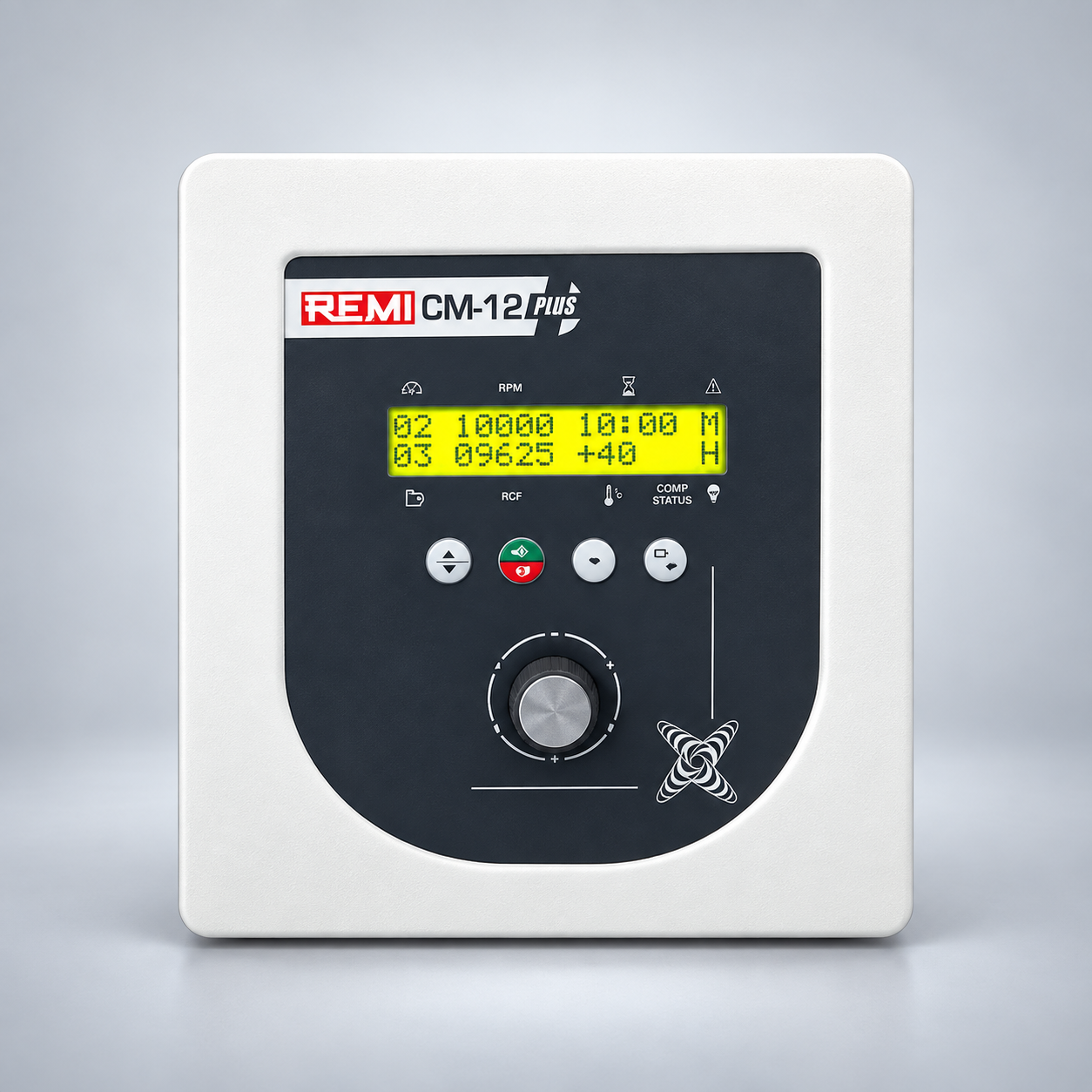

Micro Centrifuge model CM-12 Plus is useful for routine applications in bio-technology, PCR, life sciences, bio-chemical and clinical labs etc. This unit is ideal for centrifugation with micro tubes from 0.2 ml upto 1.5 ml.

Specifications

SALIENT FEATURES

Stable speed output
High Capacity (CM-8 Plus)
High Speed (CM-12 Plus)
Wide variety of rotors & reduction adaptors
Precise temperature control up to – 8°C
Pre-cooling feature
Fast spin feature
Calibration window on lid for speed (rpm)
Brushless Induction motor with variable frequency drive ensures gentle start

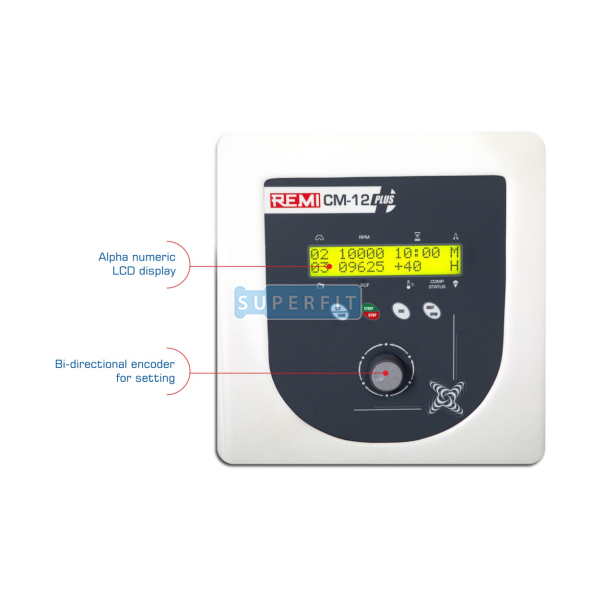

Microprocessor based unit with alpha numeric LCD display
Self-diagnosis of errors
Parameters setting through easy to use bi-directional encoder
Inverter fault detection with auto shutdown
CFC free refrigeration system
24 programme memory
3 Accelerations, 4 Deceleration profiles
Choice of rpm / rcf setting & display
Operating panel with feather touch keys
Digital countdown timer 0-99 minutes & continuous run
Last set parameters recall (Useful for repetitive analysis)
Automatic Rotor identification
Safety lid interlock to prevent lid opening during centrifugation
Imbalance detection & centrifugation stop with display of error
Motor overload protection
Gas hinge to prevent falling of door
Emergency lid lock release

	CM – 8 Plus	CM – 12 Plus
Technical Data
Max. Speed (rpm)	6000	16000
Max. RCF (g)	5070	16600
Max. Tube Size (ml)	100	5
Max. Capacity (ml)	400	40
Min. Temperature (°C)	-8	-8
#Noise	? 60 dB	? 60 dB
Dimensions WxDxH (mm)	480 x 585 x 530
Votlage Stabilizers	VS – 02	VS – 02
Supply: 220-240 Volts 50 Hz single Phase

* Note: Depending on capacity, type of roator centrifugation speed, ambient temperatures and other process parameters

* Note: Measured as per standard protocol

Models	Capacity	Type of Container	MAX. RPM	MAX. RCF

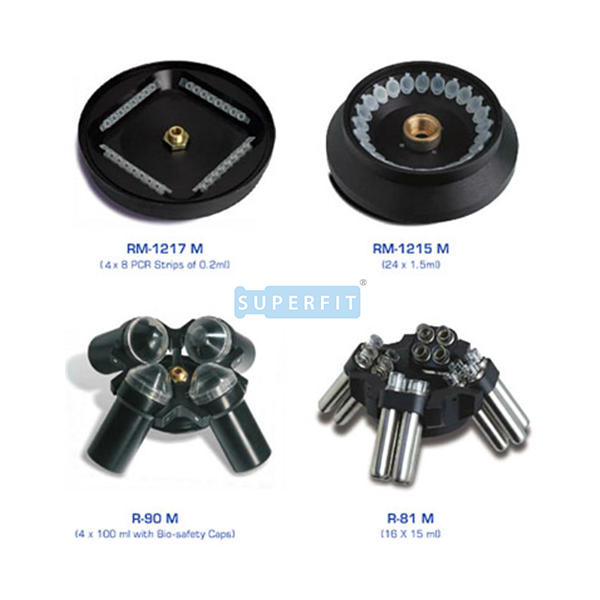

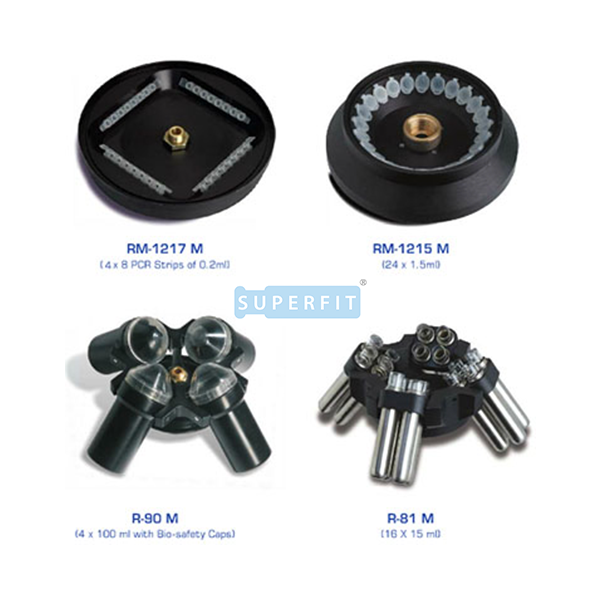

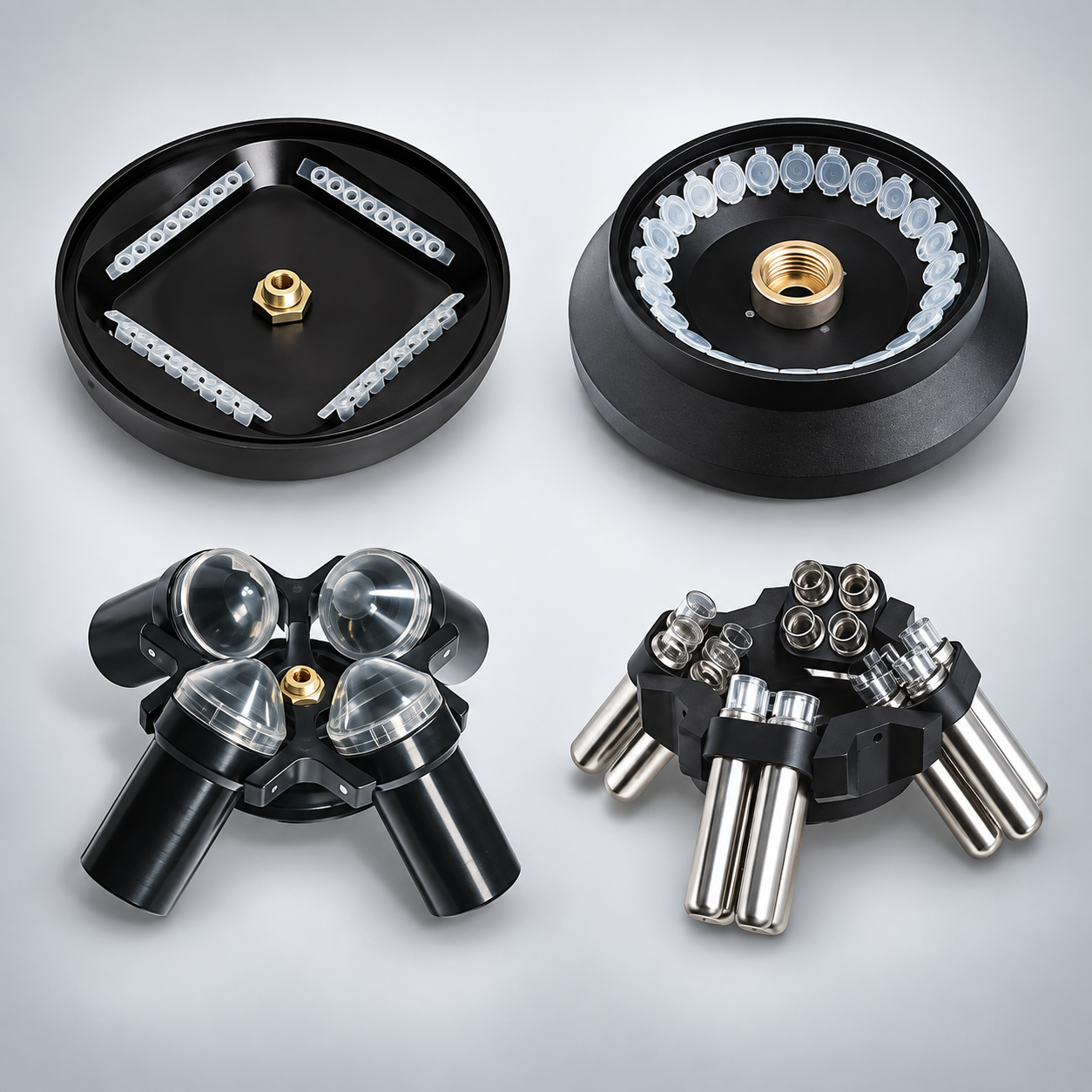

Rotors for CM-8 Plus
Swing Out Rotors
R-90 M	4 x 100 ml	Glass Tubes with Bio-safety Caps	4000	2500
R-81 M	16 X 15 ml	Glass Tubes	4500	3485
R-81B M	8 X 15 ml	Glass Tubes	4500	3485
R-82 AM	4 X 50 ml	Glass Tubes	4500	3485
Angle Rotors
Models	Capacity	Type of Container	MAX. RPM	MAX. RCF
R-83 BM	8 x 15ml	Polypropylene tubes	6000	4700
R-89 M	24 x 15ml	Polypropylene tubes	6000	5070
R-84 M	6 x 50ml	Polypropylene tubes	6000	4700
R-88 M	4 x 100ml	Polypropylene tubes	6000	4550

Models	Capacity	Type of Container	MAX. RPM	MAX. RCF
RM-1214 M	10 x 2ml	Glass Tubes	16000	16600
RM-1215 M	24 x 1.5ml	Polypropylene tubes	11850	12175
RM-1216 M	8 x 5ml	Polypropylene tubes	11850	13500
RM-1217 M	4 x 8 PCR Strips of 0.2ml	Polypropylene tubes	12000	11910

Models	Capacity	R-81M	R-81 BM	R-82 AM	R-83 BM	R-84 M	R-88 M	R-89 M	R-90 M
Reduction Adaptors for CM-8 Plus
RA-151	1 x wintrob
RA-152	1 x 3ml
RA-153	1 x 5ml
RA-154	1 x Bml
RA-155	1 x 4ml
RA-156	1 x Bml
RA-157	1 x 50ml
RA-158	1 x 30ml
RA-160	1 x 15ml
RA-161	1 x 50ml
RA-166	3 x 15ml
RA-501	1 x 15 ml
RA-502	1 x 30ml
Suitable for Falcon Tubes (without tubes)
RA-501 F	1 x 15ml
RA-160 F	1 x 15ml
RA-161 F	1 x 50ml
Suitable for Vacutainer Tubes (without tubes)
RA-162	1 x upto 5ml (75 mm long)
RA-163	1 x upto 6ml (100 mm long)
RA-164	1 x upto 10ml (100 mm long)
RA-167	4 x upto 6ml (100 mm long)
RA-168	33 x upto 10ml (100 mm long)
