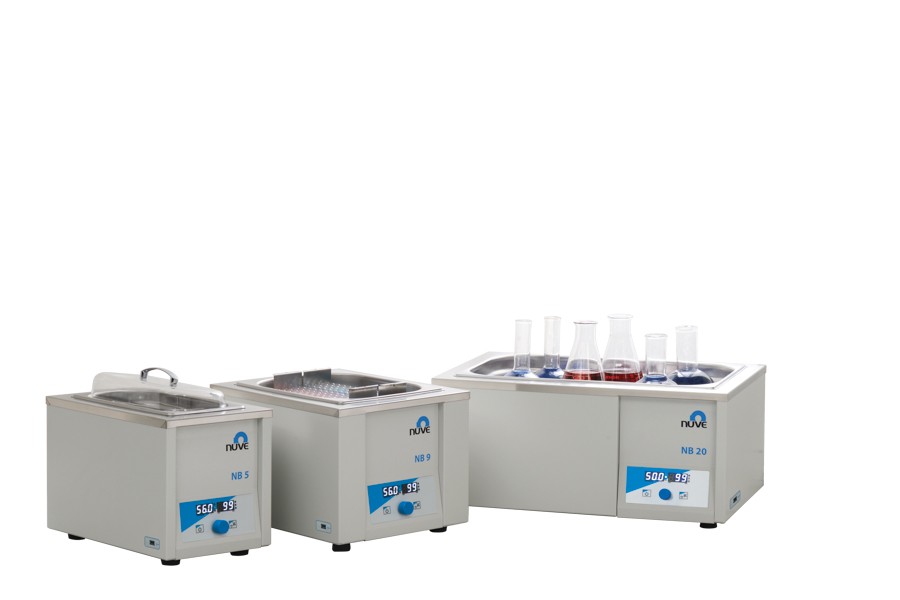

Apparently simple, NB series of unstirred water baths is nevertheless controlled by N-Prime™ microprocessor system giving excellent temperature precision, assisted by the triple insulation, for this class of instrument. A timer enables set protocols to be observed.

Most of the footprint of the water bath is usable to accept samples, since there is no pump, circulator or heater inside the chamber. A convenient drain permits fast discharge of the water. Their large displays are easily visible from across the laboratory.

Designed for many general and special applications in microbiology, research and industrial laboratories.

• Designed for many general and special applications in microbiology, research and industrial laboratories.
• User friendly control panel including large bright LED displays for temperature and time.
• Programmable alarm limits.
• Programmable delayed start function.
• Safety thermostat to prevent running dry and audible and visual alarms against over heating.
• Seamless corrosion resistant stainless steel tank for a longer life.
• Minimized risk of contamination by the rounded corners and smooth surfaces of the tank.
• Silicon sheet heaters surrounding the tank from three sides for uniform heating.
• Triple insulation consisting of glass wool, aluminum layer and air gap for high efficiency.
• Angled front panel to protect the controller from accidental water spillage.
• Efficient tank usage as there is no obstruction in the tank such as circulation pump or heater.
• Convenient drain for discharging the liquid in the tank quickly.
• Footprint almost equal to the tank dimensions to save valuable bench space.


  Specifications

  Technical Details	NB 5	NB 9	NB 20
  Tank Volume, liters	6	9,5	21
  Useful Volume, liters	4	7	15
  Temperature Range	Ambient Temp + 5°C / 99,9°C
  Temperature Sensor	Fe-Const
  Control System	N-Prime™ Control System With Programmable Microprocessor
  Displays	LED Displays for Temperature and Time
  Temperature Set and Display Sensitivity	0,1°C
  Temperature variation @37°C	± 0,1°C*
  Temperature fluctuation @37°C	± 0,01°C*
  Programmable Alarm Limits	± 0,5°C / 5°C
  Timer	1 minute – 99,9 hours + Hold Position
  Delayed Start Timer	1 minute – 99,9 hours
  Selectable Recording Frequency on Memory Stick	10 or 30 seconds; 1,5,30,60 minutes
  Inner Surface Structure	Stainless Steel
  External Surface Structure	Electrostatic Powder Coated Stainless Steel Sheet
  Power Consumption	600 W	800 W	1600 W
  Power Supply	230 V / 50 Hz
  Internal Dimension (WxDxH) mm	150x300x150	240x300x150	505x300x150
  External Dimension (WxDxH) mm	240x400x275	325x405x275	590x405x275
  Packing Dimension (WxDxH) mm	460x300x480	450x390x480	650x450x480
  Net/Packed Weight Kg.	8 / 11	9 / 12	13 / 17



  Accessories

  Cat. Nos.	Description	Qty/Pack
  K 04 290	Plexiglas lid for NB 5 (Resists up to 60°C)	Each
  K 52 010	Stainless steel lid for NB 5	Each
  K 04 286	Plexiglas lid for NB 9 (Resists up to 60°C)	Each
  K 52 007	Stainless steel lid for NB 9	Each
  K 04 289	Plexiglas lid for NB 20 (Resists up to 60°C)	Each
  K 52 003	Plexiglas lid for NB 20	Each
  K 52 008	Lid with 4 holes for NB 9 (Ø 95 mm)	Each
  K 52 005	Lid with 4 holes for NB 20 (Ø 95 mm)	Each
  K 52 006	Lid with 6 holes for NB 20 (Ø 95 mm)	Each
  K 52 014	Lid with 8 holes for NB 20 (Ø 95 mm)	Each
  A 08 051	Tube rack 52 x Ø 13 mm, wide 70 mm	Each
  A 08 050	Tube rack 30 x Ø 16 mm, wide 70 mm	Each
  A 08 021	Tube rack 27 x Ø 18 mm, wide 70 mm	Each
  A 08 049	Tube rack 12 x Ø 30 mm, wide 70 mm	Each
