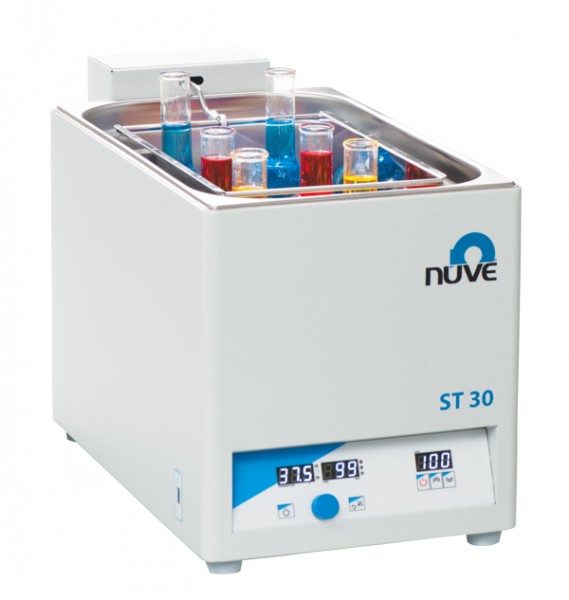

For repetitive and reproducible shaking, ST 30 offers precisely controlled conditions. N-Prime™ microprocessor control permits homogeneous, stable temperatures throughout the bath.

lt is designed for shaking a variety of tubes and containers. High visibility displays and indicators ensure that the conditions can be read from across the laboratory.

Typical uses include tissue culture, bacterial incubation, enzyme reactions and fermentation.

• Reliable and accurate N-Prime™ programmable PID microprocessor control system.
• User friendly control panel including large bright LED displays for temperature, time and shaking speed.
• Programmable alarm limits.
• Easy programming with one button, just turn and push.
• Precise shaking speed ensured by microprocessor control system and induction motor.
• Programmable delayed start function.
• Safety thermostat to prevent running dry and audible and visual alarm against over heating.
• Seamless corrosion resistant stainless steel tank for a longer life.
• Minimized risk of contamination by the rounded corners and smooth surfaces of the tank.
• Silicon sheet heaters surrounding the tank from three sides for uniform heating.
• Triple insulation consisting of glass wool, aluminum layer and air gap for high efficiency.
• Angled front panel to protect the controller from accidental water spillage.
• Convenient drain for discharging the liquid in the tank quickly.
• Possibility to use different type of tubes, flasks or erlenmeyers with wide range of accessories.


  Specifications

  Technical Specifications	Model No. ST 30
  Tank Volume	30 liters
  Useful Volume	18 litrers
  Shaking Speed Range	20-250 rpm
  Temperature Range	Ambient Temp + 5°C / 99,9°C
  Temperature Sensor	Fe-Const
  Control System	N-Prime™ Programmable PID Microprocessor
  Displays	LED display for speed, temperature and time
  Temperature Set and Display Sensitivity	0,1°C
  Temperature variation @37°C	± 0,3°C*
  Temperature fluctuation @37°C	± 0,1°C*
  Programmable Alarm Limits	± 0,5°C / 5°C
  Timer	1 minute – 99,9 hours + Hold Position
  Delayed Start Timer	1 minute – 99,9 hours
  Selectable Recording Frequency on Memory Stick	10 or 30 seconds; 1,5,30,60 minutes
  Inner Surface Structure	Stainless Steel
  External Surface Structure	Electrostatic Powder Coated Stainless Steel
  Power Consumption	750 W
  Power Supply	230 V / 50 Hz
  Shaking Basket Dimensions (WxDxH) mm	300x505x190
  External Dimension (WxDxH) mm	335x630x405
  Packing Dimension (WxDxH) mm	700x420x640
  Net/Packed Weight Kg	19 / 25
